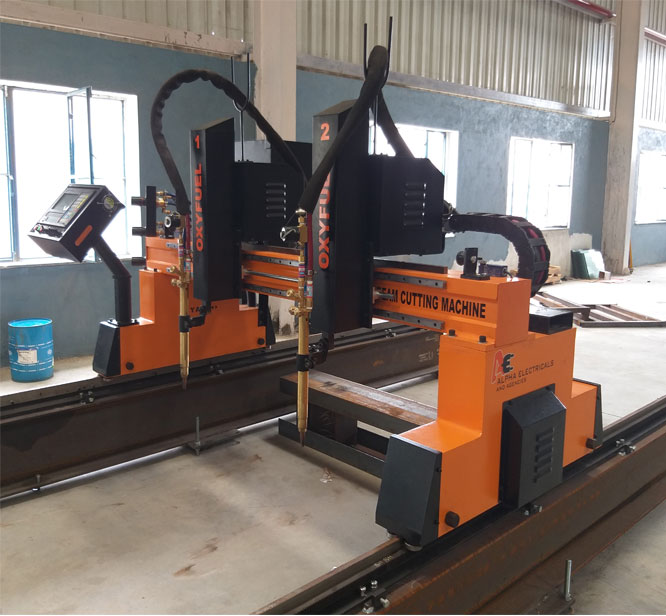

CNC Beam Cutting Machines:

  • Specially designed for Vehicle body builders
  • Can cut 2 Beams at a time
  • Only for Beam Cutting
cnc-beam





Specifications:-

Model

BEAM CUTTING MACHINES

Overall Machine Width

2500 mm

Effective Cutting Width

500 mm + 500mm

Overall Machine Length

15000 mm

Effective Cutting Length

13500 mm

Torch Height Travel (Z1 & Z2)

200 mm / 300 mm

Oxyfuel Cutting Head Only
    Cutting Torch1 & Torch2
    Cutting Capacity

--
Longten
6mm-12mm Thick Beam

Rapid Traverse

6000mm/min

Positioning Accuracy

+/-0.2mm

Shape Accuracy

+/-0.5mm

CNC Controller

F2100B

Input Power

1Ph/230VAC, 2.2KVA

Drive Mechanism

High Speed Digital Stepper Drives
